Building boats have you got plans ?

[Todd B]

I have always wanted to build a boat. I'm not talking about a ship more like a small 10-12ft tender to take my kids fishing

There are some on other sites but they cost. Im thinking I could digitize them and with my wood CNC walla

So if you have some or know someone who doe and are willing to share then cool I will be happy to share the dxf,s


I think it will be a good thing for me and the kids to do together on the weekends and then we can use it.

[DavidL]

Get off the cheap and pay for the plans, they are pretty cheap considering.

http://bateau.com/

[kevinp]

My son builds wooden models, the plans are usually fairly detailed blueprints. You could rescale those.

[Todd B]

Get off the cheap and pay for the plans, they are pretty cheap considering.

http://bateau.com/

Yeah I know but just thought I would ask.

This is about making/ building it with the kids rather than anything else. Hell with the cost of the materails I could by a decent dingy. But for me I want the kids to feel the feeling of spending time to create something and then see it finished and even use it.

PS

My wife hates this idea. Not sure why

[DavidL]

Get off the cheap and pay for the plans, they are pretty cheap considering.

http://bateau.com/

Yeah I know but just thought I would ask.

This is about making/ building it with the kids rather than anything else. Hell with the cost of the materails I could by a decent dingy. But for me I want the kids to feel the feeling of spending time to create something and then see it finished and even use it.

PS

My wife hates this idea. Not sure why

'Cause she knows it's going to get half built and left in the yard for six months to a year before it is finished!!

[Todd B]

I have 3 qualified boat builders that work for me. 1 has a mate that is a top boat designer that has plans with dxfs ready to go. NAH no way that wouldnt be fun.

So about 6 weeks ago I decided to design and make my 1st boat. 10-12ft maybe
Did a whole heap of looking on the web but no help really. So jam it and just do IT.

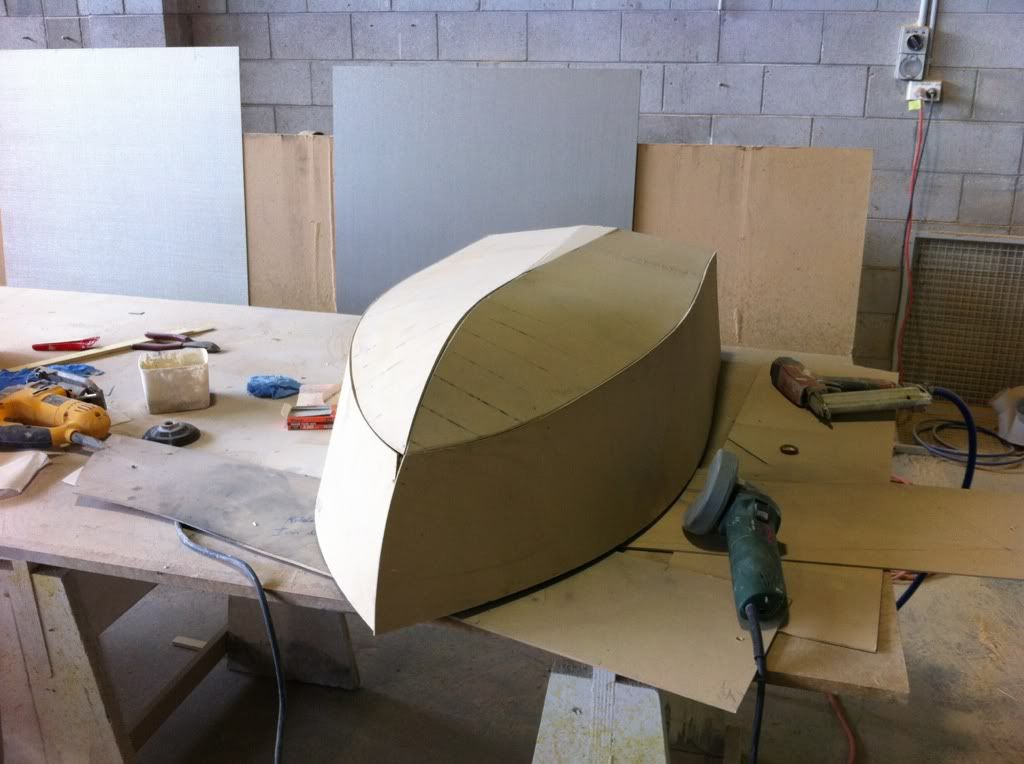

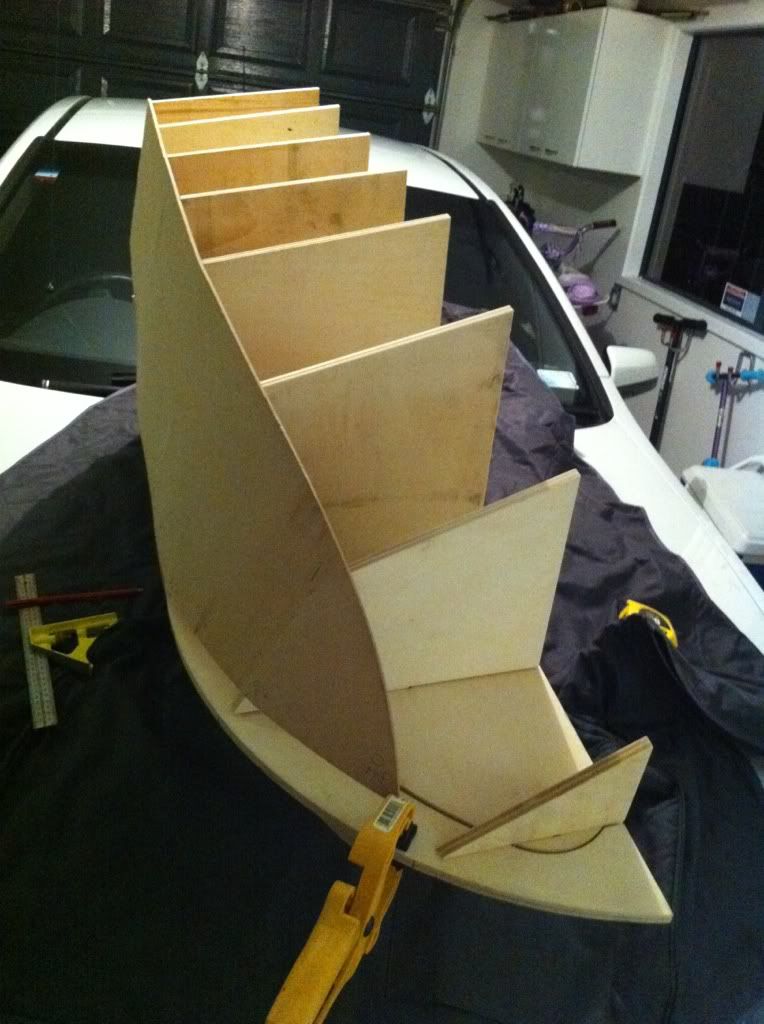

So spent some time at nights drawing. With 2d. I have not a clue with 3d but I think it will still work. So I scale down to cut a test model.




Frames right but skin off. So shaped bottom. Prolined it the cleaned drawing.



Then after over thinking this whole thing and looking at you tube watching douche bags build Shyte for like 4 weeks I say fark it and just commit to the design. After all it's small and who cares as its a project for me and my kids.

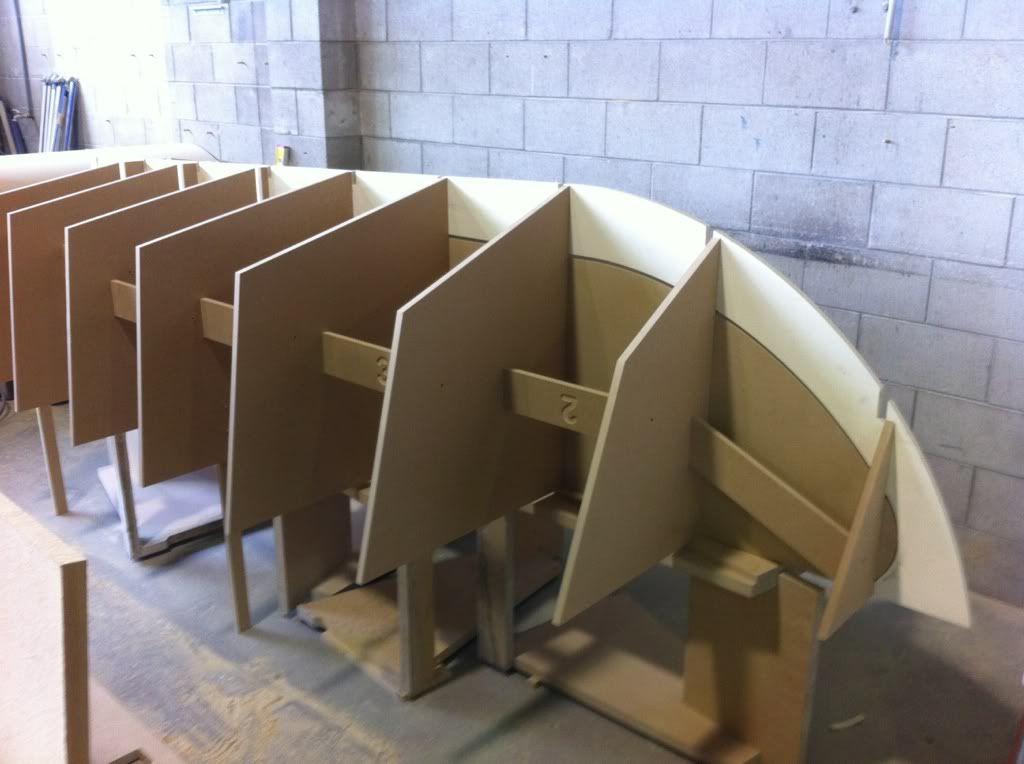

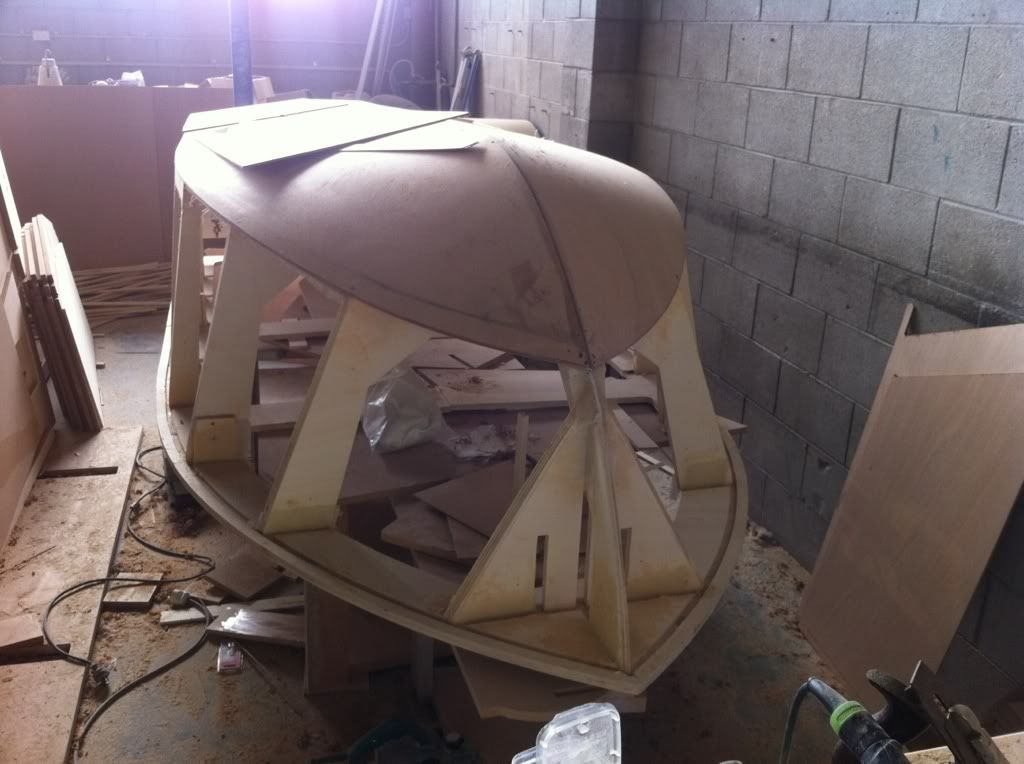

I cut MDF frames



I've tried to make like a kit set. So I spent a fair amount of time on cad.

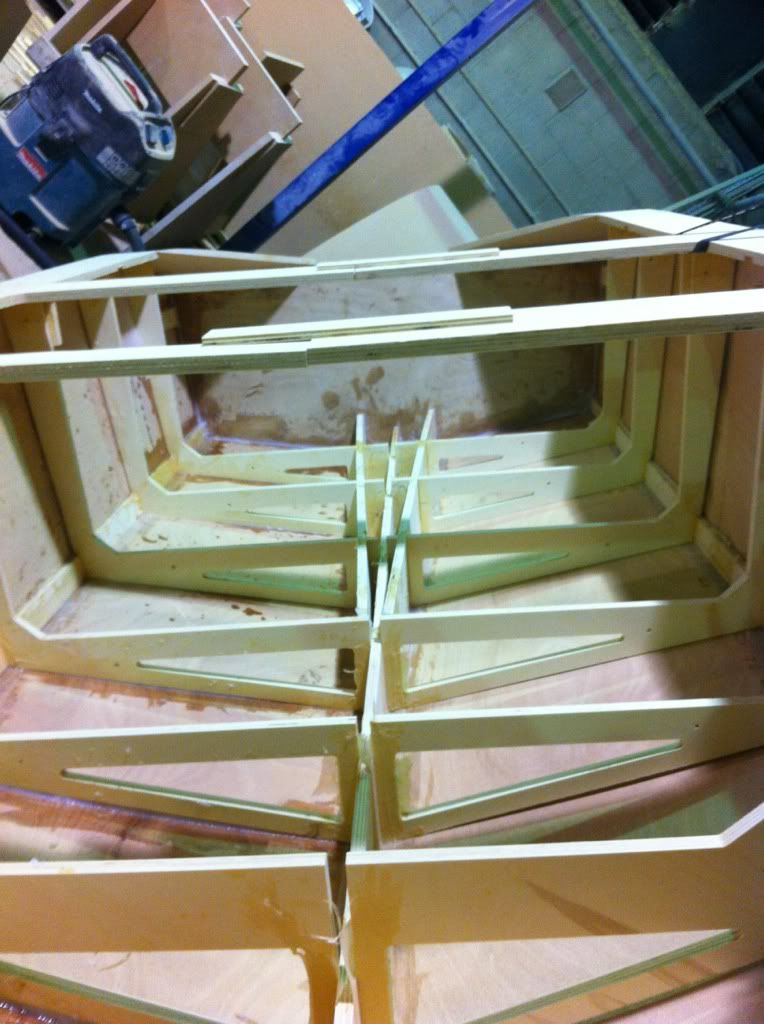

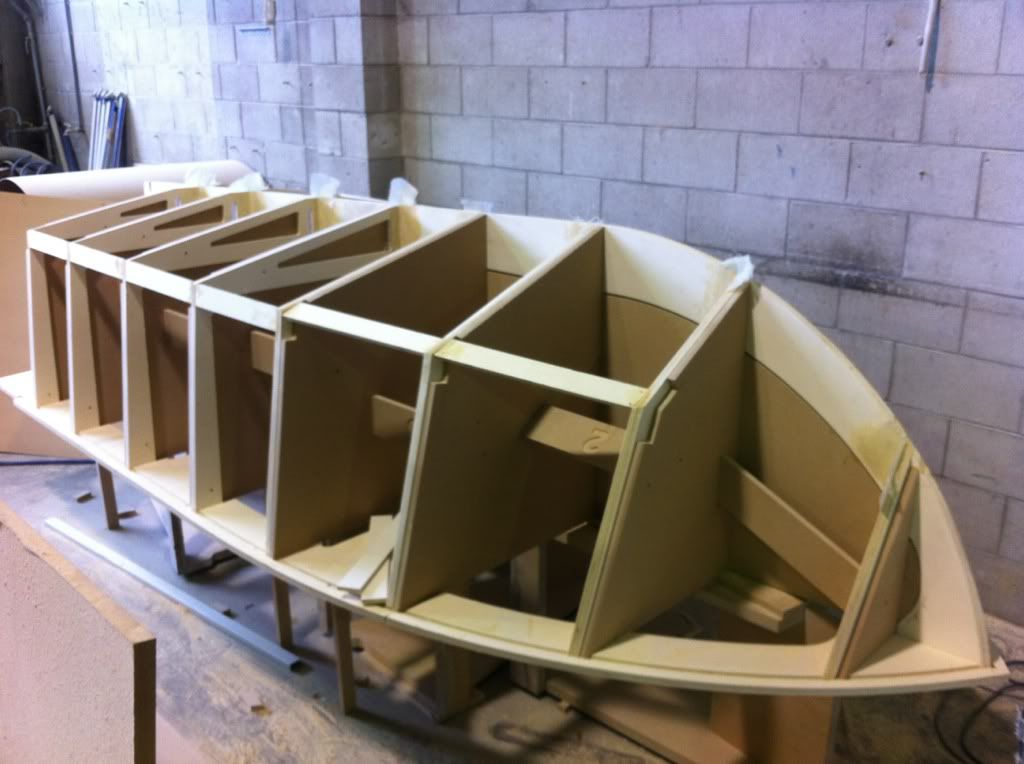

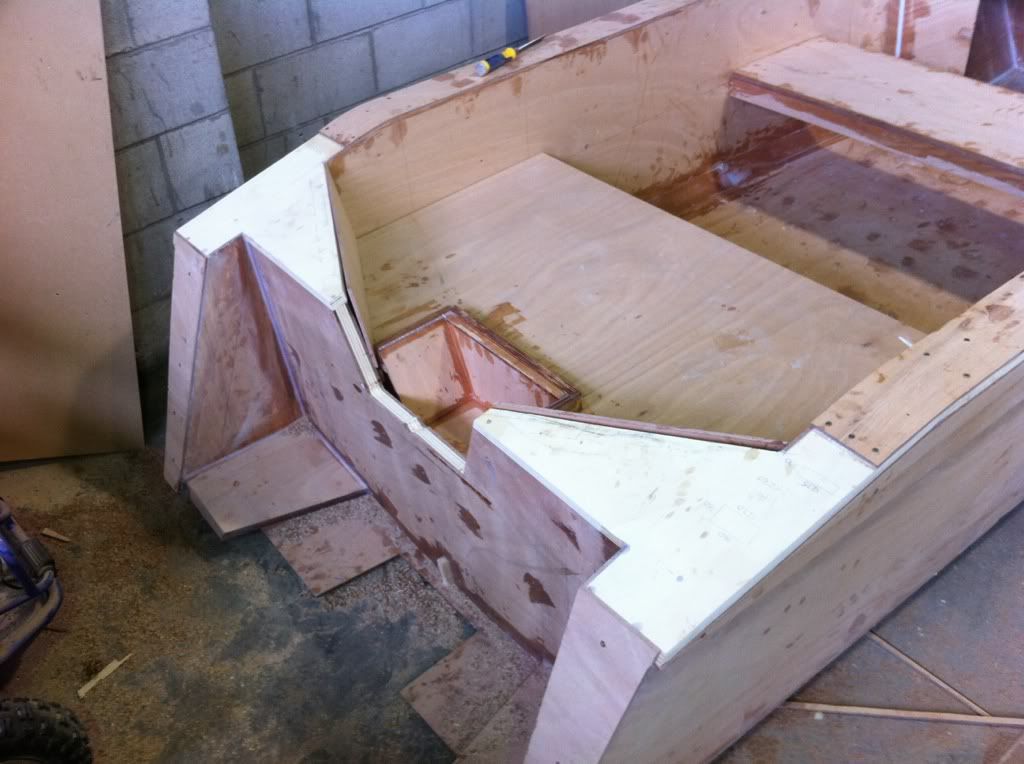

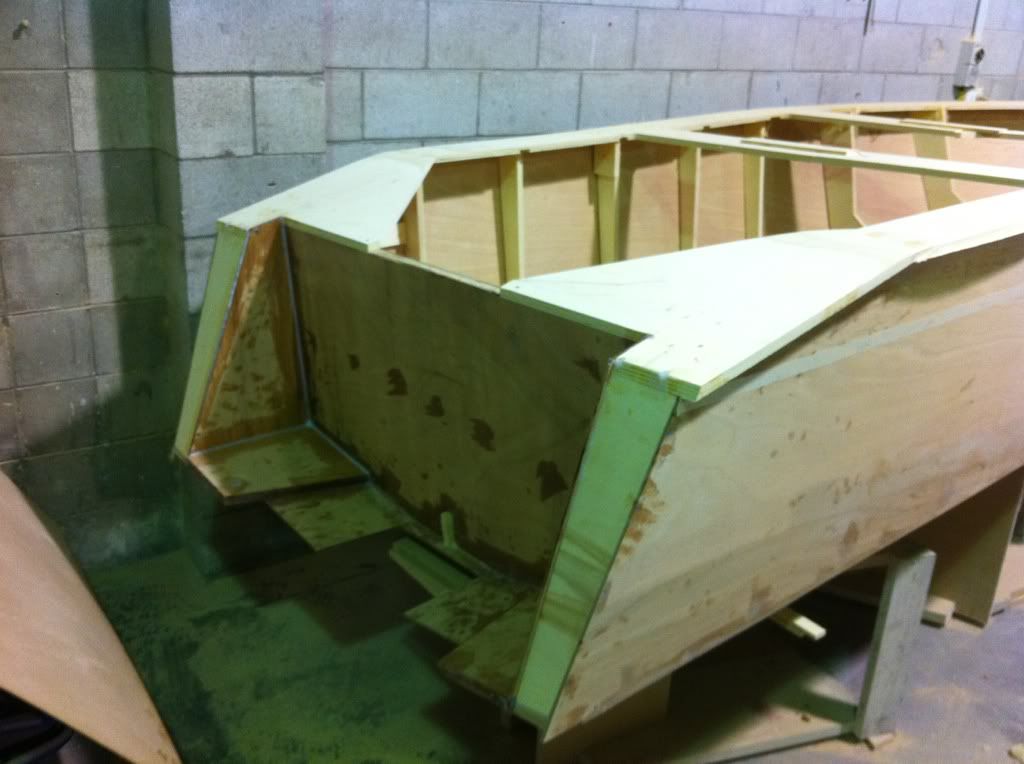

Then ply frames.





So far excluding wood CNC time Im at about 4 hours.

To be Cont...........

[clhilde]

[RBatstone]

Looks good
Maybe you should build a work bench before the boat. You might get epoxy on you bonnet.

[Todd B]

Ive got it setup at work in what my bis partner says is the 2nd CNC home. Like fark I'm saying im going back to working with wood and need space to do so.

My guys laugh and it makes me laugh how the boat builders are saying the pitch, fair, stations, chine, gunwale and the rest. I'm like what.....I glue some supports in.

[Darryl Miller]

I was gonna say move the car out and you would have more room, but then you would lose your worktable.

[topshop]

So if everything is being cnc'd how much are the kids going to be helping?

[Todd B]

So if everything is being cnc'd how much are the kids going to be helping?

Dave

In NZ wood CNC machines only cut and drill. So we will still need to assemble it. Then design the layout of seats and then glass etc. but hey my kids are 4-6 so they will be more my helpers than doing it for them selves.

I think it's good to show them that things can made and not just brought. I think it's good to show kids the principles of building things. Anything!

I still remember building a wooden trolley with my old man, and was like 4-41/2

[Curtis R. Marburger]

cool Todd

Camo that boat , stick a jet motor with remote controls , and chase sumthin on the water

[Todd B]

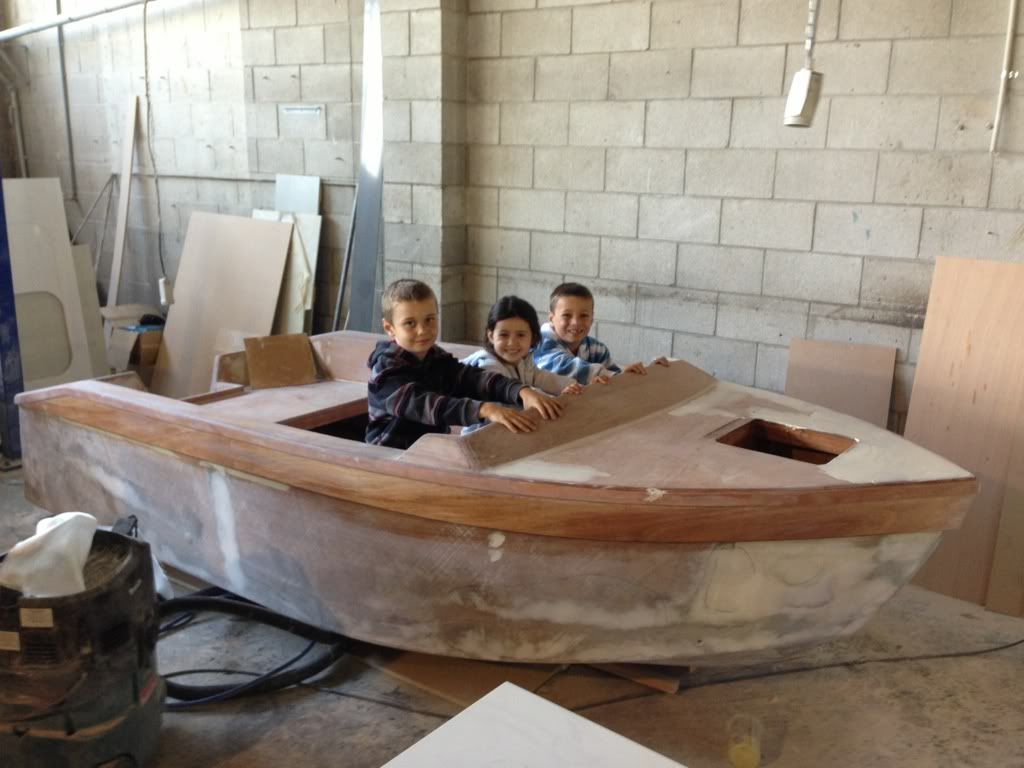

Getting there need to pull finger and not to much time with the way work is! Kids looked played and said hurry up dad.

[ash20ash]

cool project Todd. And right about where you are right now is where I would lose interest.

Stay with it to the end man, That thing is gonna be cool.

Cant wait to see the finished pics

[Ken Lago]

It looks like a boat but is it seaworthy?
When you take it out first time make sure to leave the kids on shore, wear a life jacket (always), run it hard and then take it home and check it from top to bottom.

[Todd B]

Chris it hasn't taken much time as its not big. Also it works well doing it at work as because the glue takes like 24hrs to cure you can only do a little bit at a time. I must admit though that I'm a freaken meat head for 1 thinking the kids would help and 2 starting it just before my crazy season hits.

Ken it's only 12ft long and my pro boat builder that has watched and commented recons that it way way over built. But I hear ya mate and thanks.

I only have 3 weeks till Xmas now so I'm trying but it will be touch and go. But I will do it.............(I hope)

[topshop]

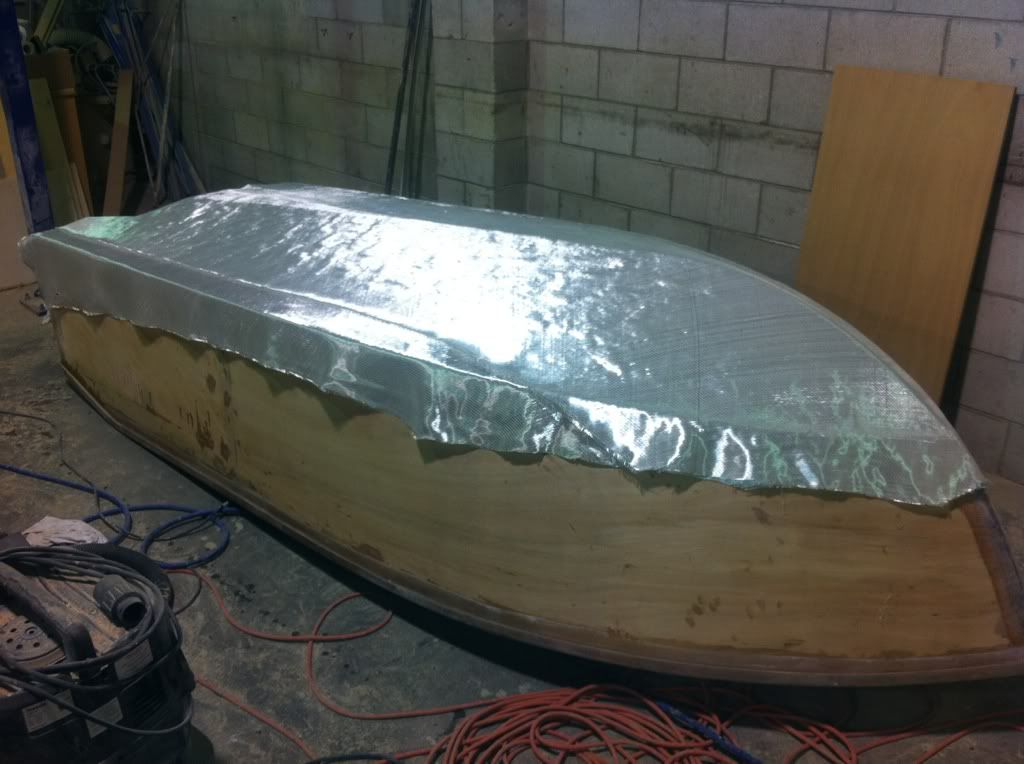

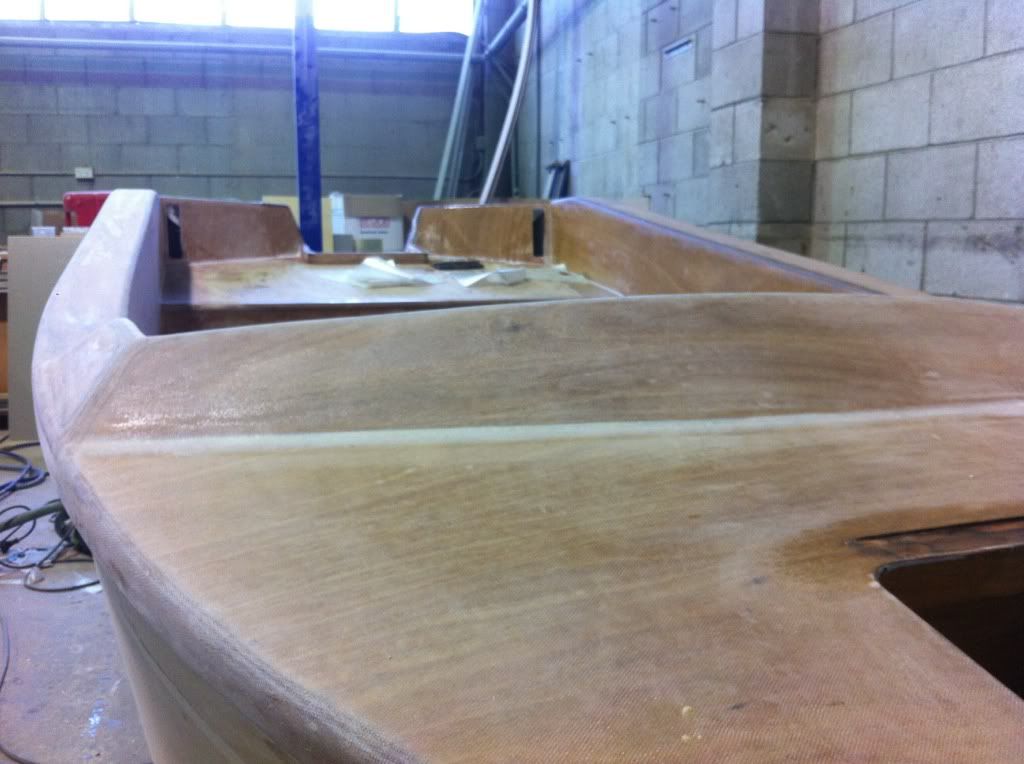

So what is going to be the finish on the outside? Fiberglass sheet and marine epoxy sanded and filled?

[Todd B]

So what is going to be the finish on the outside? Fiberglass sheet and marine epoxy sanded and filled?

Yep you got it

[ash20ash]

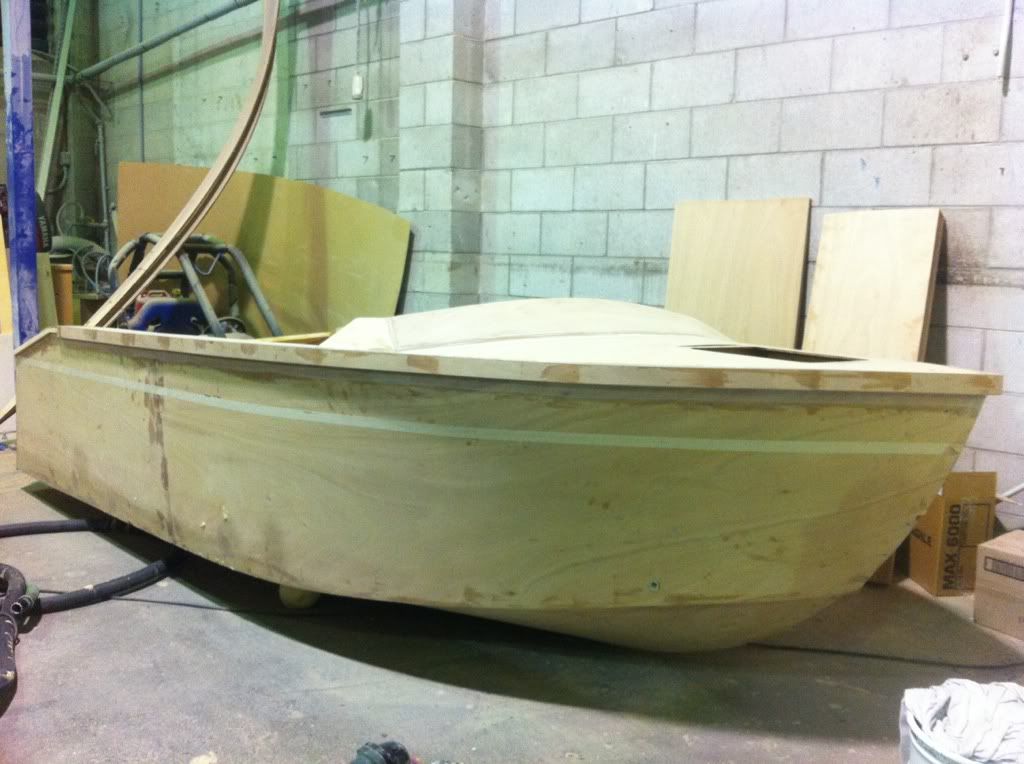

Man that looks awsome. if nothing else...........just re gift the go kart to the kids again.

I can see me standing on the front of that boat shooting fish and getting blood and guts all over that thing.



Yeah. The kids always wimp out when its time to do the real work. Leave it to ol' Dad to get it done. But. Thats what we do best.

[Matt Lansing]

That looks fantastic Todd!

Strap a 225 Evinrude to that thing and get it to dance!

I'm actually very impressed. Never something that I would have tried to tackle myself. Very nice.

[Todd B]

Really who was I kidding right! before Xmas.

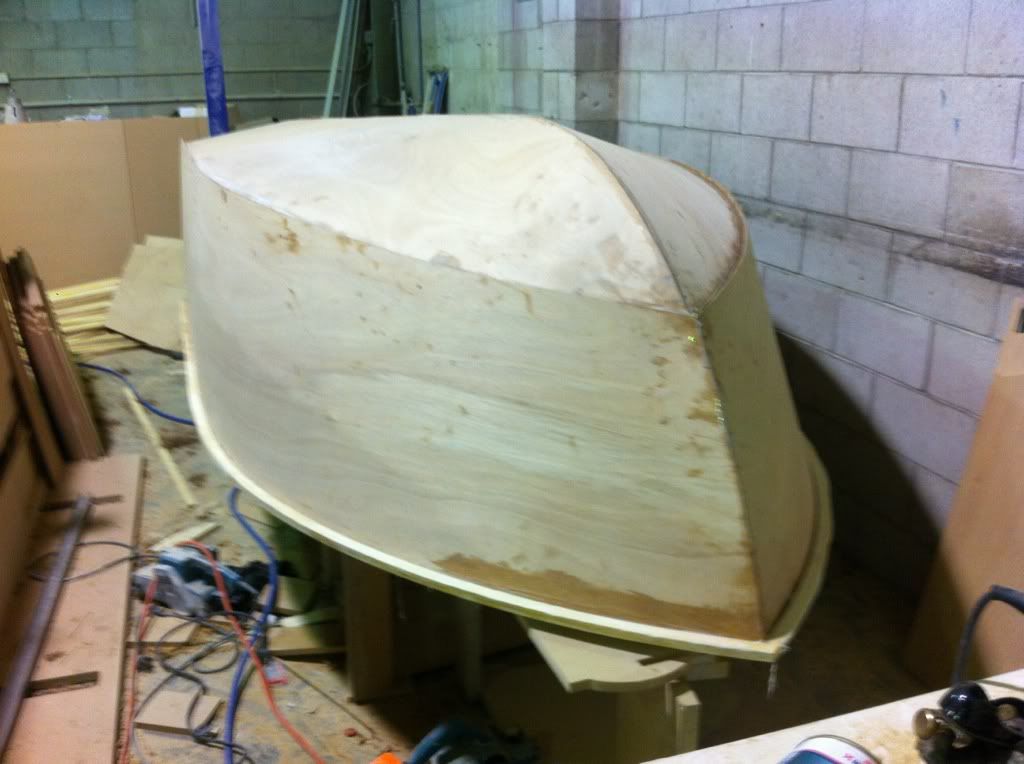

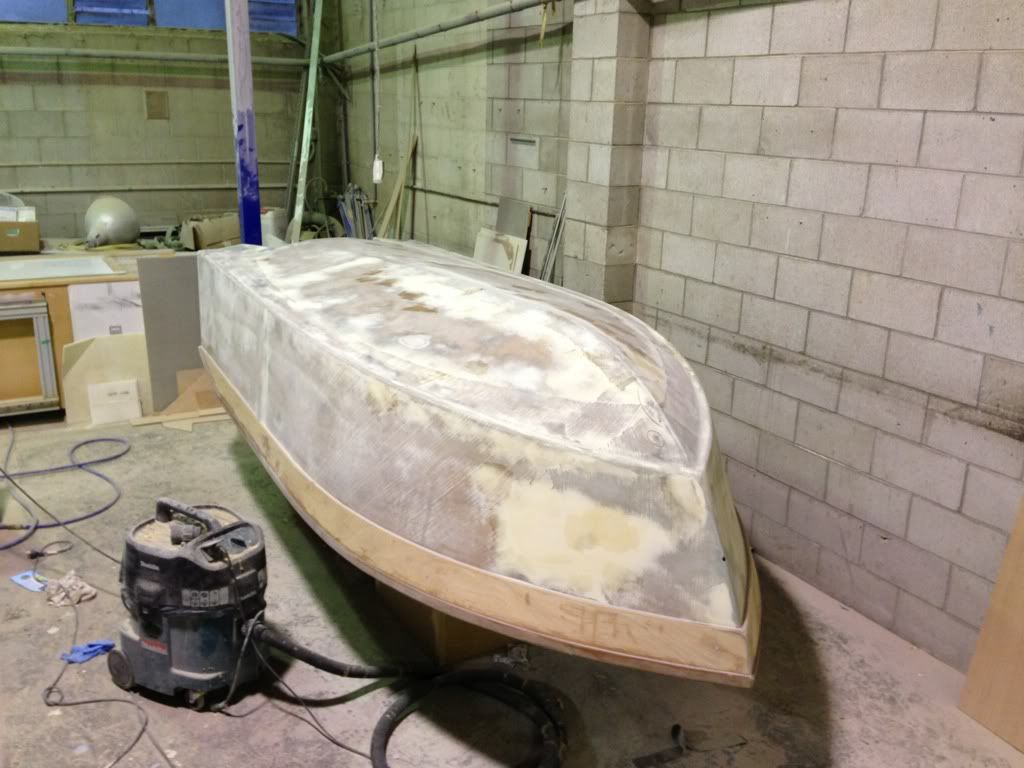

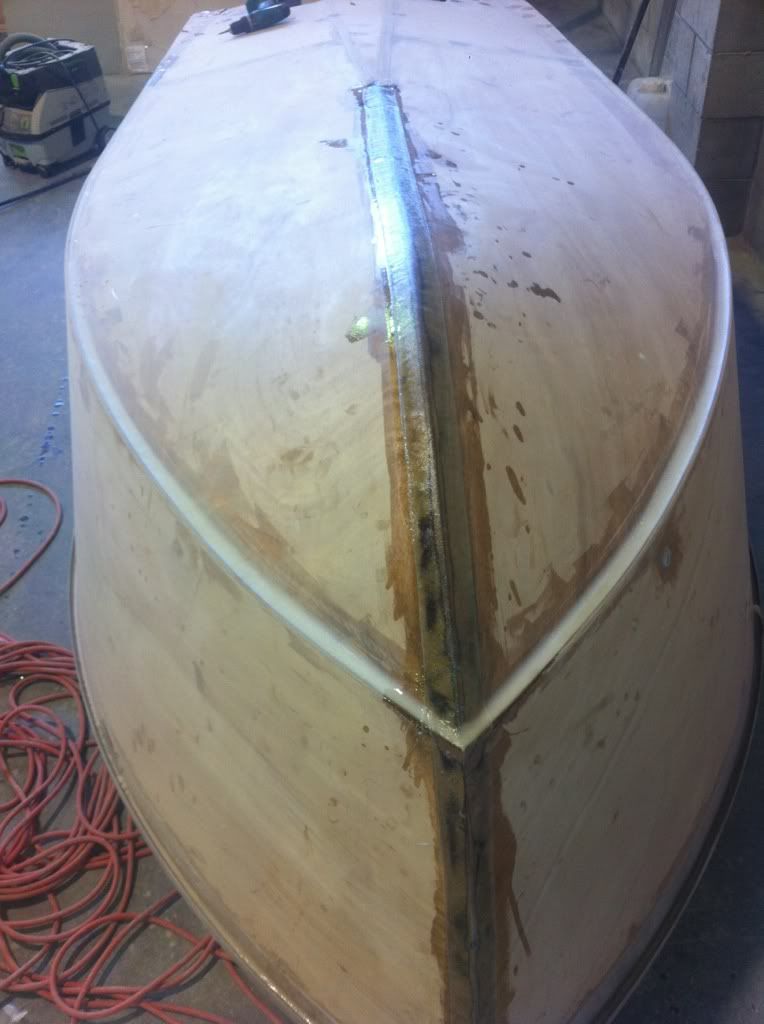

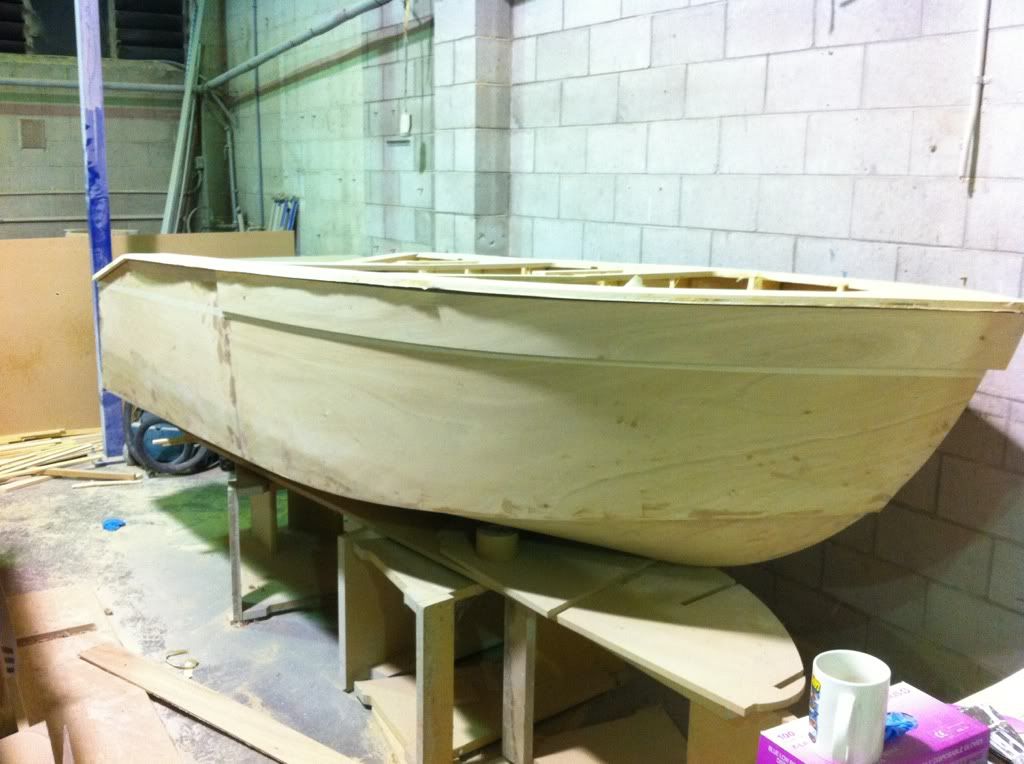

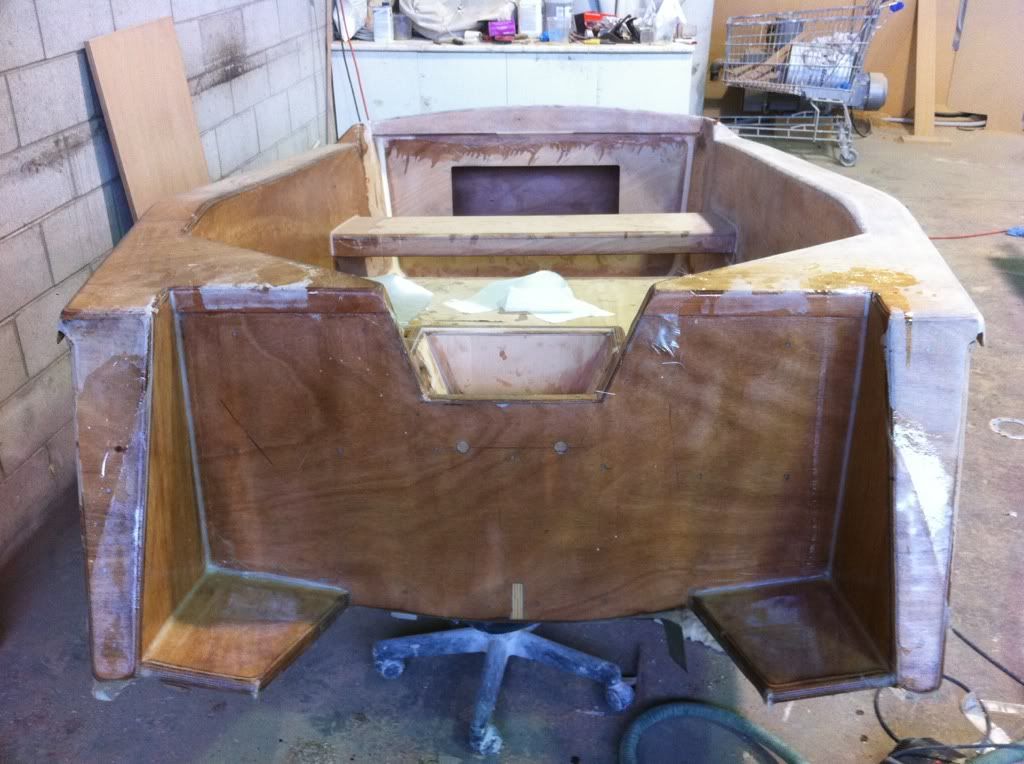

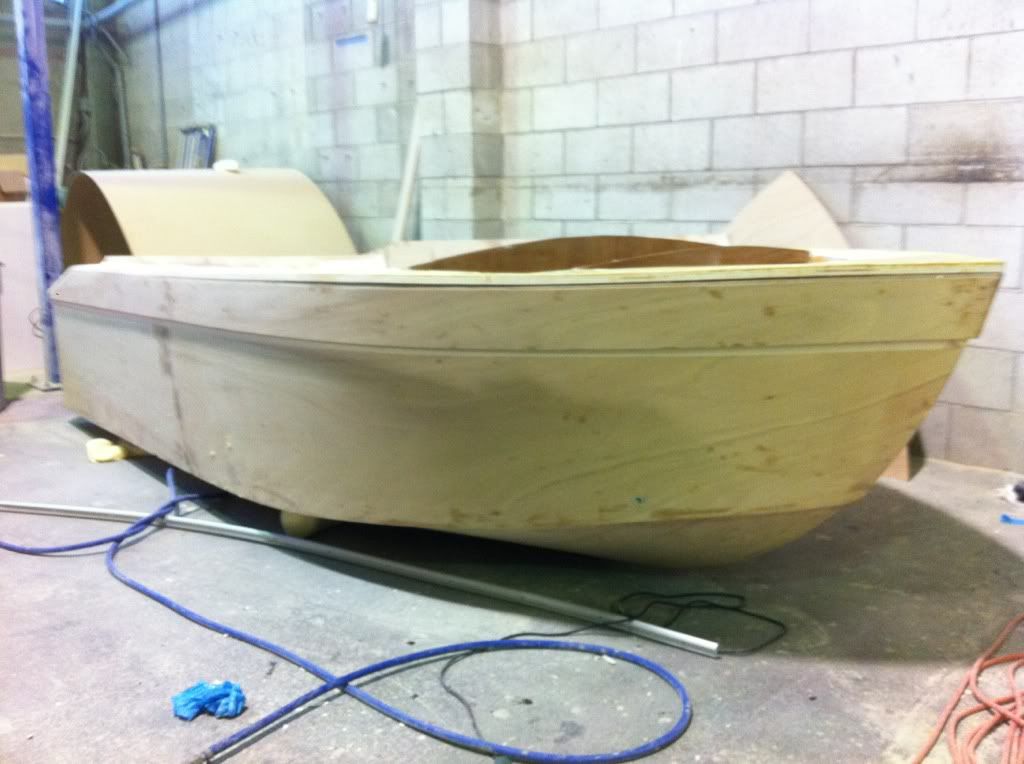

Anyway I had to stop working on it in Dec as way to busy. But started again end of Jan here's where she's at now.

[topshop]

She's getting there. I hope you are not trying to sand it all by hand.

[Todd B]

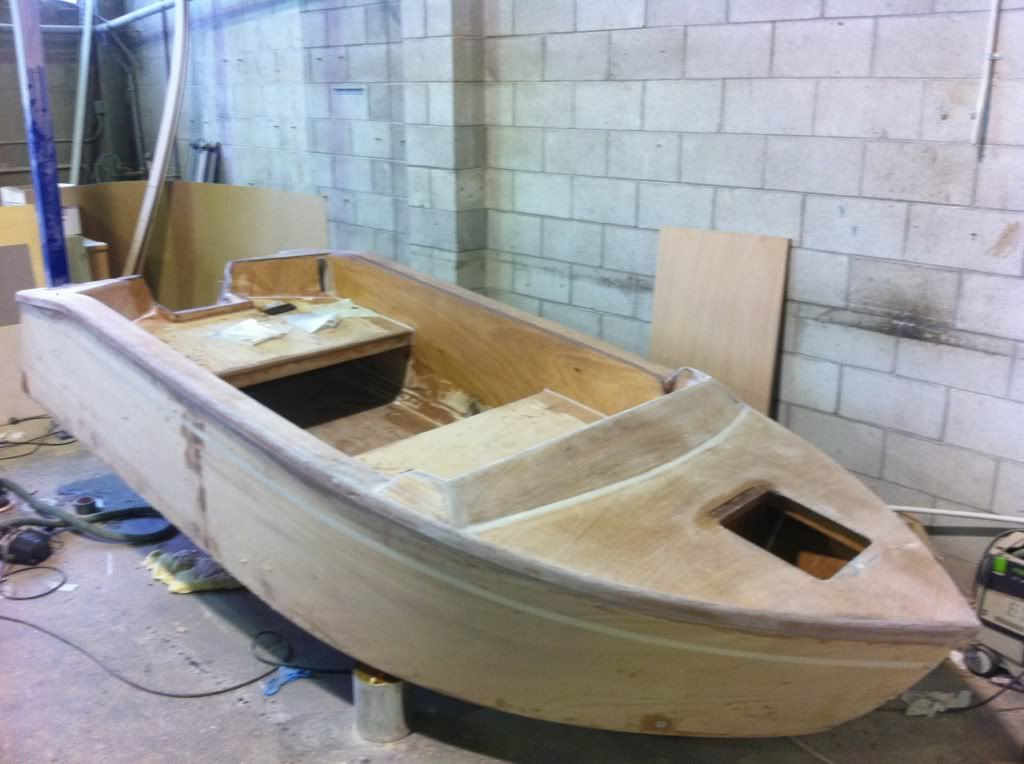

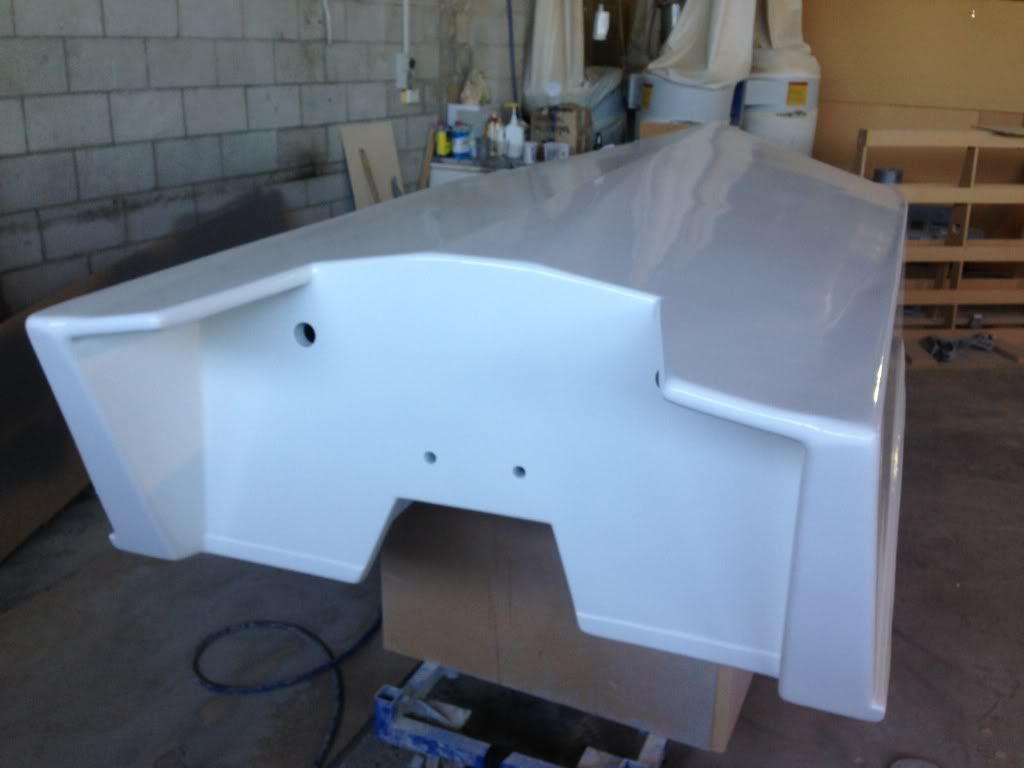

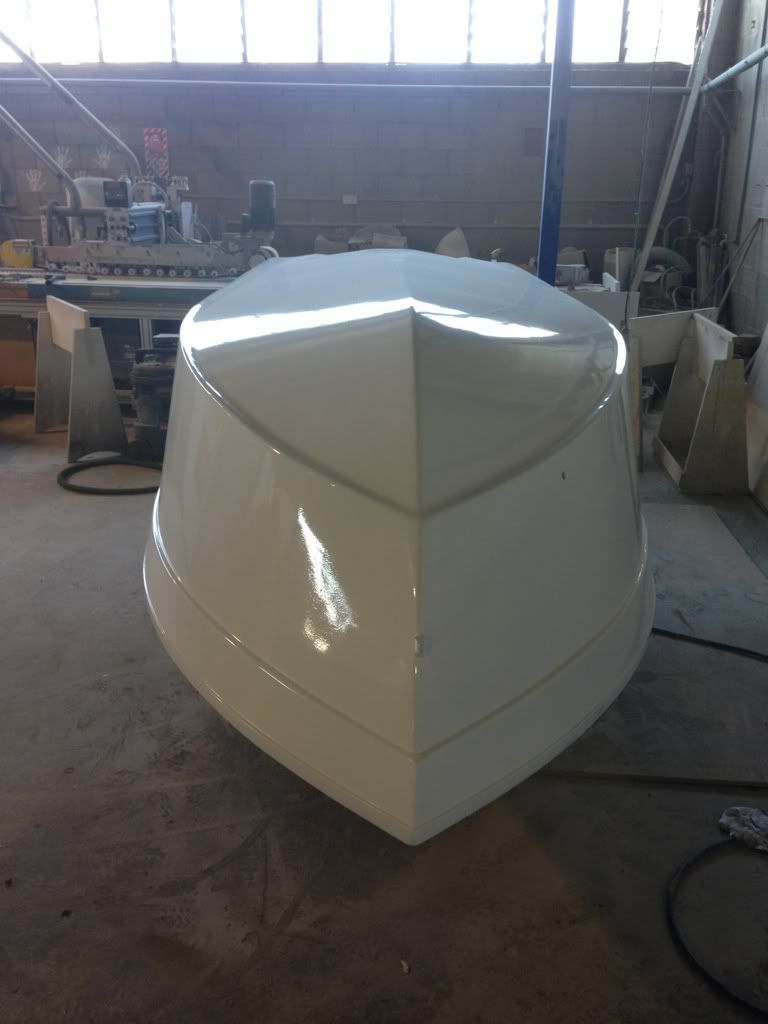

I think I should be making tops







Not far now. My bis partner taking piss big time now as to how it will sit in the h2o

[Ken Lago]

Todd, I must say you did a DAMN good job.
